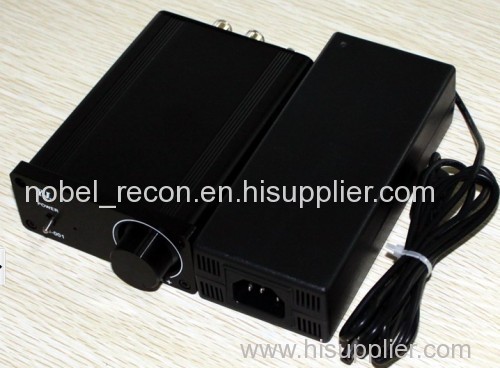

 SL-A20-D is  the new design of digital power amplifier module, it is new product for using  TDA7492, and connection is very simple. It is a 50W continuous average per  channel, power efficiency and good sound.

<!--[if  !supportLineBreakNewLine]-->

<!--[if !supportLists]-->·        <!--[endif]-->Working Voltage:  DC20-DC24V
standby by current:50MA

<!--[if !supportLists]-->·        <!--[endif]-->Output Power: L and R  channel  MAX2*50W

<!--[if !supportLists]-->·        <!--[endif]-->Output impedance:  4~8Ω

<!--[if !supportLists]-->·        <!--[endif]-->Dynamic Range = 98  dB　

<!--[if !supportLists]-->·        <!--[endif]-->High Power, 50 @  4Ω, 0.1%  THD+N

<!--[if !supportLists]-->·        <!--[endif]-->High Efficiency, 90%

<!--[if !supportLists]-->·        <!--[endif]-->Frequency  Response:20Hz-20K Hz

<!--[if !supportLists]-->·        <!--[endif]-->Suggest  working  Voltage: DC 24V
MAX output current:5A
Mute Input

<!--[if !supportLists]-->·        <!--[endif]-->Integrated Gate Drive  Supply　

<!--[if !supportLists]-->·        <!--[endif]-->Over-current protection

<!--[if !supportLists]-->·        <!--[endif]-->Over and under-voltage  protection

<!--[if !supportLists]-->·        <!--[endif]-->PCB material is FR4,  thickness 1.6MM, Cu thickness is 2OZ

size:150mm*90mm*45mm

digital amplifier  systerm,mini class D  amplifier
